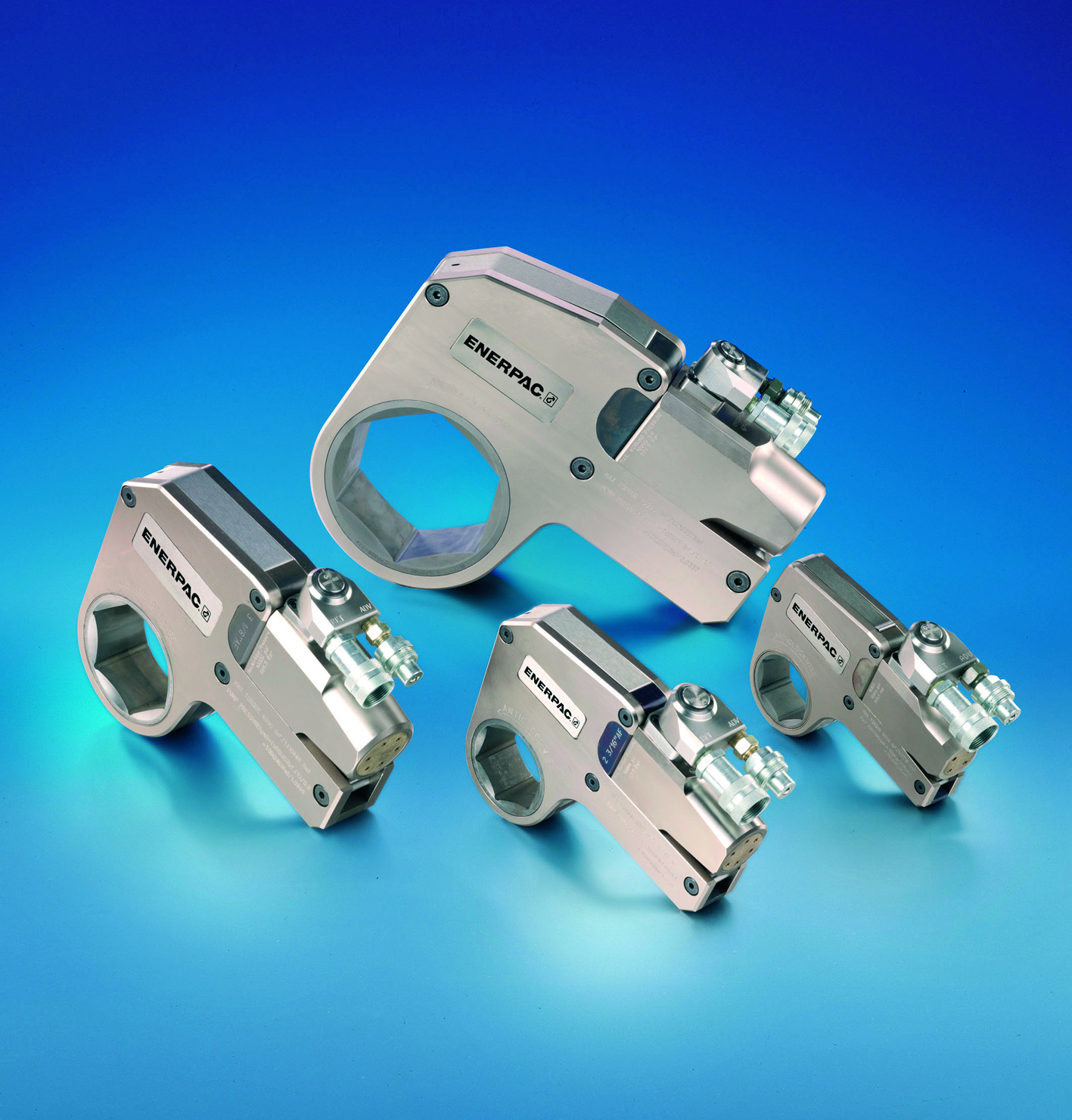

These cassette style tools are ideal for tight spaces where conventional square drive units will not fit. Hire the hydraulic torque wrench at Coates.

Gloves

"Drive Unit Model No."	"Hex. Size (mm)"	"Nose Radius H (mm)"	"Interchangeable Head Model No."	"G (mm)"	"Weight (kg)"	"Hex. Size (inch)"	"Nose Radius H (mm)"	"Interchangeable Head Model No."	"G (mm)"	"Weight (kg)"
"W2000 (2712Nm)"	32	31	W2104	53.7	1.9	1 1/4	31	W2104	53.7	1.9
	36	31	W2107	53.7	1.9	1 7/16	31	W2107	53.7	1.9
	41	33.5	W2110	58.2	2	1 5/8	33.5	W2110	58.2	2
	46	36.5	W2113	60.5	2	1 13/16	36.5	W2113	60.5	2
	50	39	W2200	63.1	2	2	39	W2200	63.1	2
	55	41.8	W2203	68.6	2.1	2 3/16	41.8	W2203	68.6	2.1
"W4000 (5423Nm)"	55	44	W4203	73.4	3.8	2 3/16	44	W4203	73.4	3.8
	60	46.5	W4206	70.6	3.9	2 3/8	46.5	W4206	70.6	3.9
	65	49.5	W4209	76.2	3.9	2 9/16	49.5	W4209	76.2	3.9
	70	52.5	W4212	78.3	4	2 3/4	52.5	W4212	78.3	4
	75	55.5	W4215	81.6	4.1	2 15/16	55.5	W4215	81.6	4.1
	80	58.5	W4302	83.5	4.2	3 1/8	58.5	W4302	83.5	4.2
"W8000 (10846Nm)"	70	56	W8212	84.8	7.8	2 3/4	56	W8212	84.8	7.8
	75	58	W8215	85	7.8	2 15/16	58	W8215	85	7.8
	80	60.5	W8302	89.5	7.9	3 1/8	60.5	W8302	89.5	7.9
	85	66	W8085M	92.2	8.1	3 1/2	66	W83081	92.2	8.1
	90	74	W8090M	102.9	8.7	3 7/8	74	W8314I	102.9	8.7
	95	74	W8095M	102.9	8.8	-	-	-	-	-
"W15000 (20337Nm)"	80	64.5	W15302	92.9	13.7	3 1/8	64.5	W15302	92.9	13.7
	85	69.5	W15085M	96.6	14	3 1/2	69.5	W15308I	96.6	14
	90	75	W15090M	101.8	14.4	3 7/8	75	W15314I	101.8	14.4
	95	75	W15095M	101.8	14.5	4 3/16	80.5	W15403	103.1	14.5
	105	80.5	W15105M	103.1	14.7	4 1/4	80.5	W15404I	103.1	14.7
	110	87.5	W15110M	114.8	15	-	-	-	-	-
	115	87.5	W15115M	114.8	15.3	4 5/8	87.5	W15410I	114.8	15.3


Drive Unit Model No:		Hex Cassette Range		Max. Torque at 700 bar		Min. Torque
		(mm)	(inch)	(Nm)	(lbf.ft)	(Nm)	(lbf.ft)
W2000 or RSL2		36-55	17/16-23/16	2712	2000	271	200
W4000 or RSL4		55-80	23/16-31/8	5423	4000	542	400
W8000 or RSL6		70-95	23/4-37/8	10.846	8000	1084	800
W15000 or RSL14		80-115	31/8-45/8	20.337	15	2033	1500
TWH430		136-158	53/8-61/4	43.792	32.2	3700	2728
