Lightweight Aluminium Shoring Shields
Lightweight Aluminium Shoring Shields
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

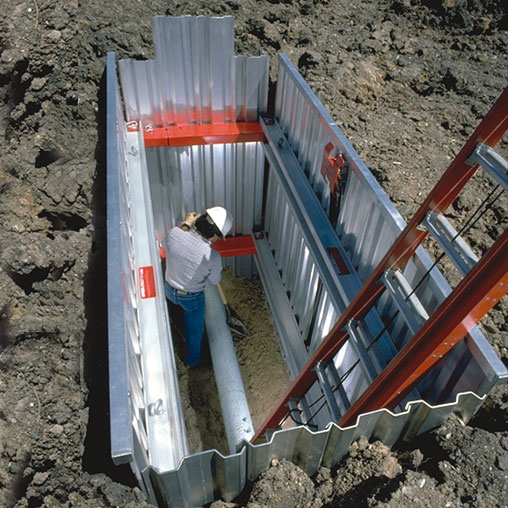

Lightweight aluminium shoring shields from Coates are suitable for trench widths up to 2.4m. Enquire at your local branch for full specifications.
Available Model / Size
model / size
code
Shoring Shield - Speed Shore - End Bracket Kit
13630
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - End Bracket Kit -
13635
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - 1.8M (L) x 1.8M (H)
13640
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - 1.8M (L) x 2.4M (H)
13645
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - 2.4M (L) x 1.8M (H)
13650
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - 2.4M (L) x 2.4M (H)
13655
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Hand Pump
14590
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Hydraulic Strut
14595
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Panel - 1.8M Long
14605
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Panel - 2.4M Long
14610
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Static Strut 1000 S
14615
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Static Strut 1300 S
14620
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Static Strut 1500 S
14625
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Static Strut 1700 S
14630
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Shoring Shield - Speed Shore - Static Strut 2300 S
14635
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Specifications
| Length x height (m) | 1.8 x 1.8 | 1.8 x 2.4 | 2.4 x 1.8 | 2.4 x 2.4 |
|---|---|---|---|---|
| Min. width internal to walings (m) | 0.405 | 0.405 | 0.405 | 0.405 |
| Max. width internal to walings (m) | 2.075 | 2.075 | 2.075 | 2.075 |
| Min. width external to sheets (m) | 0.74 | 0.74 | 0.74 | 0.74 |
| Clearance between struts (m) | 1.45 | 1.45 | 2.06 | 2.06 |
| Clearance beneath bottom strut (m) | 0.56 | 0.56 | 0.56 | 0.56 |
| Weight (kg) | 351 ? 446 | 459 ? 563 | 459 ? 563 | 481 ? 615 |
| Safe working load ? hydraulic (kPa) | 110 | 67 | 81 | 67 |
| Safe working load ? static (kPa) | 53 | 53 | 53 | 53 |
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.
