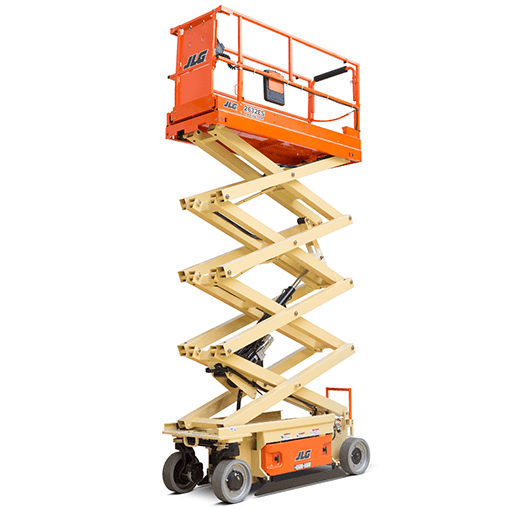

Scissor Lift - Electric - 7.7M (25.3ft)
Scissor Lift - Electric - 7.7M (25.3ft)
CODE: 10070
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
The 7.77m-9.77m narrow-deck Electric Scissor Lift is a versatile stable platform for indoor construction. Hire an electric scissor lift from Coates.
Suitable For
Specifications
Power Source |
|
| Batteries | 4 x 6V, 220 A-h |
| Charger | 20 A automatic |
General Specifications |
|
| Brakes | Automatic Friction - Front |
| Capacity - Hydraulic Reservoir | 10.60 L / 2.8 gal. |
| Hydraulic Pump | Fixed Displacement Gear |
| Machine Weight | 2103 kg / 4636.3 lb |
Performance Data |
|
| Drive Speed - Platform Elevated | 0.80 km/h / 0.5 mph |
| Drive Speed - Platform Lowered | 4.40 km/h / 2.7 mph |
| Drive System | 24V Electric |
| Gradeability | 25 % |
| Lift Time | 40 sec. |
| Lower Time | 40 sec. |
| Maximum Drive Height | 7.77 m / 25.5 ft |
| Platform Capacity - Extension | 120 kg / 264.6 lb |
| Platform Capacity - Restricted | 360 kg / 793.7 lb |
| Platform Capacity - Unrestricted | 230 kg / 507.1 lb |
| Turning Radius - Inside | 0 m / 0 ft |
| Turning Radius - Outside | 2.06 m / 6.8 ft |
Dimensional Data |
|
| Ground Clearance | 0.09 m / 4 in. |
| Machine Height | 2.33 m / 7.6 ft |
| Machine Height - Rails Folded | 1.98 m / 6.5 ft |
| Machine Length | 2.30 m / 7.5 ft |
| Machine Width | 0.81 m / 2.7 ft |
| Platform Dimension A | 0.76 m / 2.5 ft |
| Platform Dimension B | 2.30 m / 7.5 ft |
| Platform Extension Length | 0.90 m / 3 ft |
| Platform Height | 7.77 m / 25.5 ft |
| Platform Height - Lowered | 1.23 m / 4 ft |
| Platform Railing Height | 1.10 m / 3.6 ft |
| Tyre Size | 41 x 12.5 cm |
| Wheelbase | 1.88 m / 6.2 ft |
Reach Specifications |
|
| Platform Height | 7.77 m / 25.5 ft |
| Working Height | 9.77 m / 32.1 ft |
FAQ
How to charge an electric scissor lift?
Turn the key to off, then plug the lift extension cord into a regular power outlet. Recharge for a minimum of 6 hours. The indicator light will show when charging is complete.
How to operate an electric scissor lift?
Electric scissor lifts are operated from the work platform, making precise manoeuvring into position easy. Contact Coates if you require elevated work platform (EWP) ticket qualifications.
How much does an electric scissor lift weigh?
This scissor lift weighs 2103kg, providing a strong and stable centre of gravity for working at heights. The compact dimensions and vertical rise make this electric scissor lift suitable for tight spaces and indoor or outdoor use. Check out Coates rates for the best deal on electric scissor lifts, rough terrain scissor lifts and hybrid diesel/electric scissor lifts.
Turn the key to off, then plug the lift extension cord into a regular power outlet. Recharge for a minimum of 6 hours. The indicator light will show when charging is complete.
How to operate an electric scissor lift?
Electric scissor lifts are operated from the work platform, making precise manoeuvring into position easy. Contact Coates if you require elevated work platform (EWP) ticket qualifications.
How much does an electric scissor lift weigh?
This scissor lift weighs 2103kg, providing a strong and stable centre of gravity for working at heights. The compact dimensions and vertical rise make this electric scissor lift suitable for tight spaces and indoor or outdoor use. Check out Coates rates for the best deal on electric scissor lifts, rough terrain scissor lifts and hybrid diesel/electric scissor lifts.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.
