Straight Boom Lift - Diesel - 12M (39.4ft) - Track
Straight Boom Lift - Diesel - 12M (39.4ft) - Track
CODE: 10184
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

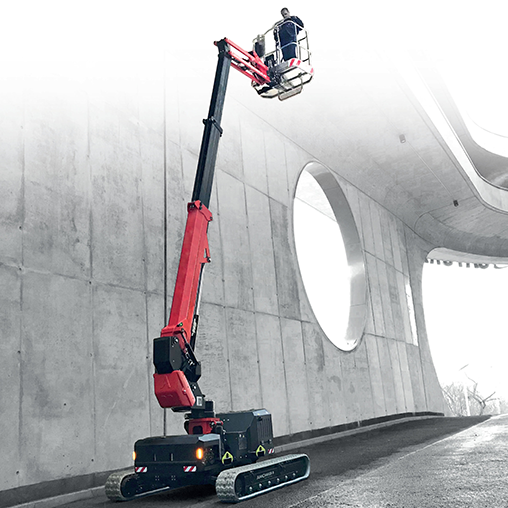

The Jibbi 1250 EVO is a 12 metre (working height) straight boom that is operated on a tracked bi-levelling carriage. The unit can operate on slopes of up to 15 degrees in both front and sideways conditions. We give access into difficult to reach locations with rough ground conditions. The Jibbi 1250 EVO has non marking tracks with adjustable track width and secondary sensor guarding.
Suitable For
Specifications
| Max working height | 12,2 m |
| Max height basket floor | 10,2 m |
| Moving height | 8,0 m |
| Max outreach (load 80 kg) | 7,0 m |
| Max outreach (load 230 kg) | 5,4 m |
| Rotation angle | +/-110° |
| Basket size | 1,4 x 0,7 m |
| Basket rotation angle | +/- 70° |
| Max basket capacity | 230 kg |
| Length in stowed position (with detached basket) | 3,7 (3,0) m |
| Min width in stowed position | 1,15 m |
| Max working width | 1,95 m |
| Min height in stowed position | 1,98 m |
| Longitudinal leveling | +/- 15° |
| Lateral leveling | +/- 15° |
| Max gradeability | 25° |
| Max side greadeability | 25° |
| Drive speed (fast) | 2,5 km/h |
| Security speed | 0,3 km/h |
| Weights | |
| Traffic load | 3,86 kN/m2 |
| Total weight | 2850 kg |
| Power | |
| 3TNM68 -AS Yanmar engine (diesel) | 14 kW – 19,2 Hp |
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.| Max working height | 12,2 m |
