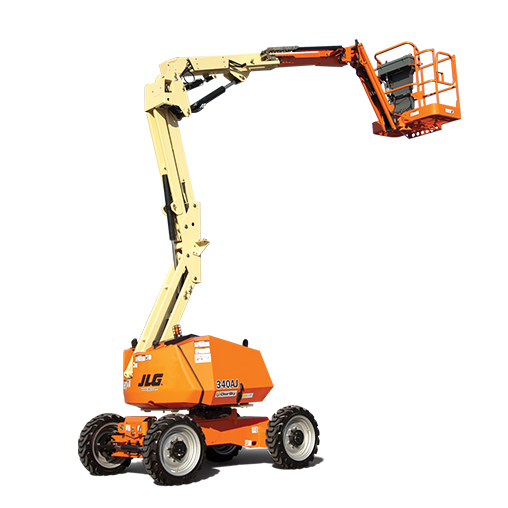

Knuckle Boom - Diesel - 10.3M (33.9ft)
Knuckle Boom - Diesel - 10.3M (33.9ft)
CODE: 10120
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Our range of Diesel Knuckle Booms at Coates are specifically designed to access areas that require an up-and-over approach. Hire our Diesel Knuckle Boom now.
Suitable For
Specifications
Power Source |
|
| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 49 L / 12.9 gal. |
| Engine Type - Diesel (LRC) | Kubota D1105 18.5 kW 24.8 hp |
Performance Data |
|
| Axle Oscillation | 0.15 m / 6 in. |
| Turning Radius - Outside | 3.96 m / 13 ft |
| Drive Speed - 4WD | 5 km/h / 3.1 mph |
| Gradeability - 4WD | 45 % |
| Platform Capacity - Unrestricted | 230 kg / 507.1 lb |
| Swing | 355 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius - Outside (axles retracted) | 3.96 m / 13 ft |
Dimensional Data |
|
| Ground Clearance | 0.24 m / 9 in |
| Machine Height | 2 m / 6.6 ft |
| Machine Length | 5.52 m / 18.1 ft |
| Machine Width | 1.93 m / 6.3 ft |
| Platform Dimension A | 0.76 m / 2.5 ft |
| Platform Dimension B | 1.52 m / 5 ft |
| Platform Height | 10.33 m / 33.9 ft |
| Tailswing | 0.05 m / 2 in |
| Tyre Size | 30x10-18 FA Solid Flex Cushion/Non-marking |
General Specifications |
|
| Capacity - Hydraulic Reservoir | 75 L / 19.8 gal. |
| Ground Bearing Pressure | 4.50 Kg/cm2 |
| Machine Weight | 4400 kg / 9700.3 lb |
Reach Specifications |
|
| Working Height | 12.33 m / 40.5 ft |
| Working Outreach | 6.71 m / 22 ft |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 6.06 m / 19.9 ft |
| Platform Height | 10.33 m / 33.9 ft |
| Horizontal Jib Rotation | 125 Degrees |
| Horizontal Outreach | 19.25 m / 63.2 ft |
| Platform Height | 38.30 m / 125.7 ft |
| Up and Over Height | 18.44 m / 60.5 ft |
FAQ
Is it safe to operate articulating boom lifts?
Articulating boom lifts are very safe to operate when used according to manufacturers guidelines. Coates equipment satisfies the highest safety standards. Our boom lifts are regularly serviced and checked prior to every hire.
Where to rent articulating boom lifts?
Coates has an Australia-wide network of hire outlets in all major cities and regional centres. Contact us online or over the phone, or visit us in-store. You can even reserve an articulating boom lift online so it is available when you need it.
Can articulating boom lifts tip over?
Articulating boom lifts and other access equipment should only be used as directed to avoid the potential for tipping over. Boom lifts have a specific weight capacity, and the operator should account for workers, tools and other materials on the platform. A boom lift should never be used as a crane.
How much does it cost to rent an articulating boom lift?
Articulated boom lift hire cost will depend on the hire period and size of lift required. This diesel powered boom lift will provide the ideal work height for multiple work functions.
Articulating boom lifts are very safe to operate when used according to manufacturers guidelines. Coates equipment satisfies the highest safety standards. Our boom lifts are regularly serviced and checked prior to every hire.
Where to rent articulating boom lifts?
Coates has an Australia-wide network of hire outlets in all major cities and regional centres. Contact us online or over the phone, or visit us in-store. You can even reserve an articulating boom lift online so it is available when you need it.
Can articulating boom lifts tip over?
Articulating boom lifts and other access equipment should only be used as directed to avoid the potential for tipping over. Boom lifts have a specific weight capacity, and the operator should account for workers, tools and other materials on the platform. A boom lift should never be used as a crane.
How much does it cost to rent an articulating boom lift?
Articulated boom lift hire cost will depend on the hire period and size of lift required. This diesel powered boom lift will provide the ideal work height for multiple work functions.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.
