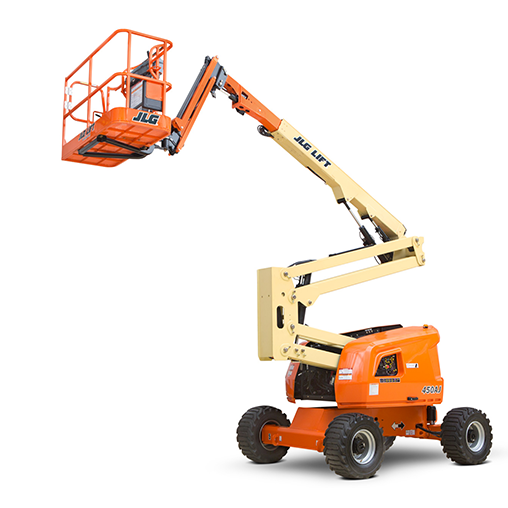

Knuckle Boom - Diesel - 13.7M (45ft)
Knuckle Boom - Diesel - 13.7M (45ft)
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Power Source
Auxiliary Power 12 Volts DC
Capacity - Fuel Tank 60.50 L / 16 gal.
Engine Type - Diesel (LRC) Deutz D2.3L3 T4i 49 hp 36.4 kW
Performance Data
Axle Oscillation 0.1 m / 4 in.
Drive Speed - 4WD 6.80 km/h / 4.2 mph
Gradeability - 4WD 45 %
Platform Capacity - Unrestricted 249.50 kg / 550.1 lb
Swing 355 Degrees
Swing Type Non-Continuous
Turning Radius - Outside 4.78 m / 15.7 ft
Dimensional Data
Ground Clearance 0.42 m / 1 ft 5 in.
Machine Height 2.27 m / 7.4 ft
Machine Length 6.58 m / 21.6 ft
Height 6.58 m / 21.6 ft
Machine Width 2.34 m / 7.7 ft
Platform Dimension A 0.76 m / 2.5 ft
Platform Dimension B 1.83 m / 6 ft
Platform Height 13.72 m / 45 ft
Tailswing Zero
Reach Specifications
Horizontal Jib Rotation 0 Degrees
Horizontal Outreach 7.62 m / 25 ft
Platform Height 13.72 m / 45 ft
Up and Over Height 6.09 m / 20 ft
Working Height 15.77 m / 51.7 ft
Working Outreach 8.27 m / 27.1 ft
General Specifications
Capacity - Hydraulic Reservoir 144 L / 38 gal.
Ground-Bearing-Pressure 4 Kg/cm2
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.Power Source
