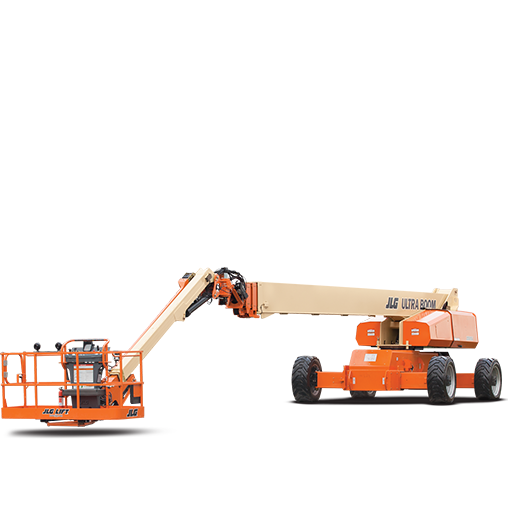

Straight Boom Lift - Diesel - 45.7M (150ft)
Straight Boom Lift - Diesel - 45.7M (150ft)
CODE: 10221
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Towering above the competition, this 45.7m straight boom lift allows you to reach where others can’t. Sometimes there is no alternative to maximum reach for accessing high building cladding, glazing and other features. Whether you are building, renovating, updating or maintaining a building or other structure, a telescopic straight boom lift with full in-basket controls is the smart solution for a safe workplace.
Suitable For
Specifications
1500SJ
Telescopic Boom Lifts
| Power Source | |
Auxiliary Power |
12 Volts DC |
Capacity - Fuel Tank |
117 L / 30.9 gal. |
Engine Type - Diesel (LRC) |
Deutz TD2011L4 55.9 kW 74.9 hp |
| Performance Data | |
Axle Oscillation |
0.3 m / 1 ft |
Drive Speed - 4WD |
4.80 km/h / 3 mph |
Gradeability - 4WD |
40 % |
Platform Capacity - Restricted |
450 kg / 992.1 lb |
Platform Capacity - Unrestricted |
230 kg / 507.1 lb |
Swing |
360 Degrees |
Swing Type |
Continuous |
Turning Radius - Outside (axles extended) |
5.89 m / 19.3 ft |
Turning Radius - Outside (axles retracted) |
6.86 m / 22.5 ft |
| Dimensional Data | |
Height |
13.11 m / 43 ft |
Ground Clearance |
0.3 m / 1 ft |
Machine Height |
3.05 m / 10 ft |
Machine Length |
18.81 m / 61.7 ft |
Machine Width |
2.49 m / 8.2 ft |
Interior Width |
3.81 m / 12.5 ft |
Platform Dimension A |
0.91 m / 3 ft |
Platform Dimension B |
2.44 m / 8 ft |
Platform Height |
45.72 m / 150 ft |
Tailswing |
1.68 m / 5.5 ft |
Tyre Size |
445/50D710 Foam-Filled |
| Reach Specifications | |
Working Height |
47.72 m / 156.6 ft |
Working Outreach |
25.03 m / 82.1 ft |
Horizontal Jib Rotation |
0 Degrees |
Horizontal Outreach |
24.38 m / 80 ft |
Platform Height |
45.72 m / 150 ft |
| General Specifications | |
Capacity - Hydraulic Reservoir |
250 L / 66 gal. |
Ground Bearing Pressure |
7.95 Kg/cm2 |
Machine Weight |
21772 kg / 47999 lb |
FAQ
What is the biggest boom lift?
The 150 ft telescopic boom lift is the biggest Coates elevated work platform. This lift provides maximum working height potential for carrying out elevated work tasks. It has a 4WD gradeability of 40% for manoeuvring on sloping surfaces, and an outreach of 82.1 ft (25m).
How much weight can a 150 ft boom lift carry?
This 150 ft tracked boom lift has a restricted platform capacity of 450kg, and an unrestricted platform capacity of 230kg. The 2.44 metre platform is long enough to carry two workers and their equipment comfortably, with operation performed by on-platform control.
When is it too windy to use a boom lift?
Outdoor boom lifts are designed to handle winds up to 45 km per hour. If winds exceed this speed the boom lift should be lowered. Do not use a boom lift in strong, gusty winds. For more information about 150 ft boom lift hire in Melbourne, Sydney, and all other major cities and regional centres, contact Coates.
The 150 ft telescopic boom lift is the biggest Coates elevated work platform. This lift provides maximum working height potential for carrying out elevated work tasks. It has a 4WD gradeability of 40% for manoeuvring on sloping surfaces, and an outreach of 82.1 ft (25m).
How much weight can a 150 ft boom lift carry?
This 150 ft tracked boom lift has a restricted platform capacity of 450kg, and an unrestricted platform capacity of 230kg. The 2.44 metre platform is long enough to carry two workers and their equipment comfortably, with operation performed by on-platform control.
When is it too windy to use a boom lift?
Outdoor boom lifts are designed to handle winds up to 45 km per hour. If winds exceed this speed the boom lift should be lowered. Do not use a boom lift in strong, gusty winds. For more information about 150 ft boom lift hire in Melbourne, Sydney, and all other major cities and regional centres, contact Coates.
