Trailer Mounted Boom - Diesel/Electric - 12.7M (42ft)
Trailer Mounted Boom - Diesel/Electric - 12.7M (42ft)
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

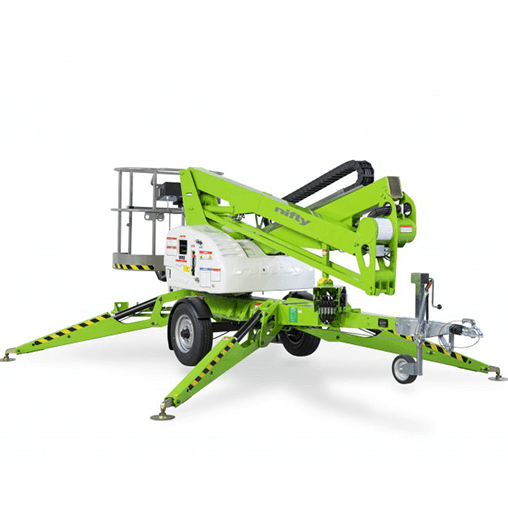

Trailer mounted booms are an ingenious innovation transforming workplaces and building sites. This 15.0m high access device is mounted on its own trailer for convenient towing, and is fitted with sturdy stabilisers for on-site safety and performance. The diesel/electric motors provide additional options for tradespersons and other workers who require access to high building spaces, ceilings, windows and fixtures. A trailer mounted boom can be onsite and operational in no time.
Suitable For
Specifications
Working Height (A)
14.7m 48ft 6in
Working Outreach (C)
7.55m 25ft
Platform Height (B)
12.7m 42ft
Machine Width (F)
1.6m 5ft 3in
Machine Height (D)
2m 6ft 7in
Machine Length (J)
5.55m 18ft 3in
Working Width (G)
3.8m 12ft 6in
Minimum Weight
1775kg 3915lbs
Safe Working Load
225kg 500lbs
Cage Width
1.4m 4ft 7in
Cage Depth
0.65m 2ft 4in
Outrigger Type
Hydraulic
Traction Drive
Available
Power Options
Mains only
Battery only
Petrol or Diesel Only
Bi-Energy (Engine & Battery)
FAQ
How does the Nifty trailer mounted boom lift work?
The Nifty 150 trailer mounted boom lift can be towed into position using a regular sedan and tow bar. Traction-drive operation, hydraulically operated outriggers, in-basket controls and compact dimensions make this boom lift the convenient solution for working at heights.
Are trailer mounted boom lifts safe?
Trailer mounted boom lifts are safe to operate. The outriggers provide a firm footing for elevated work up to 15m high, plus a working outreach of 7.55m. Coates provides elevated work platform (EWP) training, with the accredited qualifications valid for five years.
How to start a trailer boom lift?
1: Pull out the emergency stop button on the Nifty 150 control panel.
2: Select ‘platform’.
3: Enter the platform.
4: Pull out the emergency stop button on the platform control panel.
5: Proceed with work using the buttons, lever and controller located on the operator console.
Please see the instructions manual of your access equipment because beginning any construction job.
The Nifty 150 trailer mounted boom lift can be towed into position using a regular sedan and tow bar. Traction-drive operation, hydraulically operated outriggers, in-basket controls and compact dimensions make this boom lift the convenient solution for working at heights.
Are trailer mounted boom lifts safe?
Trailer mounted boom lifts are safe to operate. The outriggers provide a firm footing for elevated work up to 15m high, plus a working outreach of 7.55m. Coates provides elevated work platform (EWP) training, with the accredited qualifications valid for five years.
How to start a trailer boom lift?
1: Pull out the emergency stop button on the Nifty 150 control panel.
2: Select ‘platform’.
3: Enter the platform.
4: Pull out the emergency stop button on the platform control panel.
5: Proceed with work using the buttons, lever and controller located on the operator console.
Please see the instructions manual of your access equipment because beginning any construction job.
