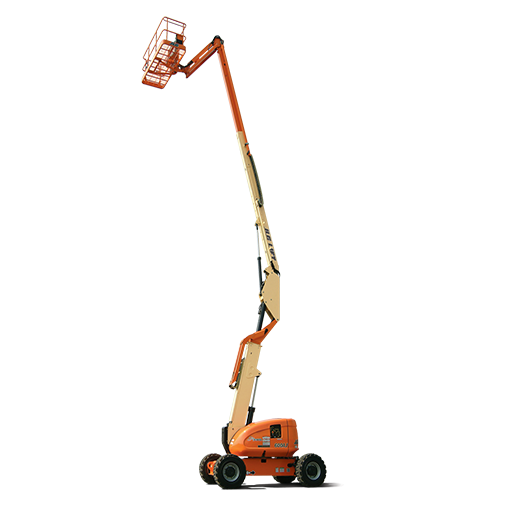

Knuckle Boom - Diesel - 18.5M (60.6ft)
Knuckle Boom - Diesel - 18.5M (60.6ft)
CODE: 10135
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Our diesel-engine 18m Knuckle Booms at Coates provide reliable performance in rough terrains. Hire from our wide range access equipment.
Suitable For
Specifications
Power Source |
|
| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 114 L / 30.1 gal. |
| Engine Type - Diesel (LRC) | Deutz D2011L04 36.4 KW (49 Hp) |
Performance Data |
|
| Axle Oscillation | 0.2 m / 8 in. |
| Drive Speed - 2WD | 6.80 km/h / 4.2 mph |
| Drive Speed - 4WD | 6.80 km/h / 4.2 mph |
| Gradeability - 2WD | 30 % |
| Gradeability - 4WD | 45 % |
| Platform Capacity - Unrestricted | 230 kg / 507.1 lb |
| Swing | 360 Degrees |
| Swing Type | Continuous |
| Turning Radius - Outside (2WS) | 5.36 m / 17.6 ft |
| Turning Radius - Outside (4WS) | 3.56 m / 11.7 ft |
Dimensional Data |
|
| Ground Clearance | 0.3 m / 1 ft |
| Machine Height | 2.57 m / 8.4 ft |
| Machine Length | 8.82 m / 28.9 ft |
| Machine Width | 2.49 m / 8.2 ft |
| Platform Dimension A | 0.91 m / 3 ft |
| Platform Dimension B | 2.44 m / 8 ft |
| Platform Height | 18.46 m / 60.6 ft |
| Tailswing | 0 m / 0 in. |
| Tyre Size | 14 x 17.5 Urethane Filled |
General Specifications |
|
| Capacity - Hydraulic Reservoir | 151 L / 39.9 gal |
| Ground Bearing Pressure | 5.30 Kg/cm2 |
| Machine Weight | 11900 kg / 26235 lb |
Reach Specifications |
|
| Working Height | 20.46 m / 67.1 ft |
| Working Outreach | 12.75 m / 41.8 ft |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 12.10 m / 39.7 ft |
| Platform Height | 18.46 m / 60.6 ft |
| Up and Over Height | 8.09 m / 26.5 ft |
FAQ
What is an articulating boom lift?
An articulating boom lift is access equipment that contains a ‘knuckle’ so the operator can negotiate the work platform above and over obstacles at the desired working height. Telescopic boom lifts are the safe way to perform elevated work.
Do I need a license to operate a boom lift?
You do require a license to operate diesel and electric boom lifts, so take advantage of Coates elevated work platform (EWP) training courses before getting your project underway.
How much does a boom lift weigh?
Boom lifts are heavy-duty machinery designed for construction and industrial applications. They vary greatly in size and weight, with the 18.5m diesel knuckle boom weighing 1900kg. Coates can organise delivery to your construction site.
An articulating boom lift is access equipment that contains a ‘knuckle’ so the operator can negotiate the work platform above and over obstacles at the desired working height. Telescopic boom lifts are the safe way to perform elevated work.
Do I need a license to operate a boom lift?
You do require a license to operate diesel and electric boom lifts, so take advantage of Coates elevated work platform (EWP) training courses before getting your project underway.
How much does a boom lift weigh?
Boom lifts are heavy-duty machinery designed for construction and industrial applications. They vary greatly in size and weight, with the 18.5m diesel knuckle boom weighing 1900kg. Coates can organise delivery to your construction site.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.
