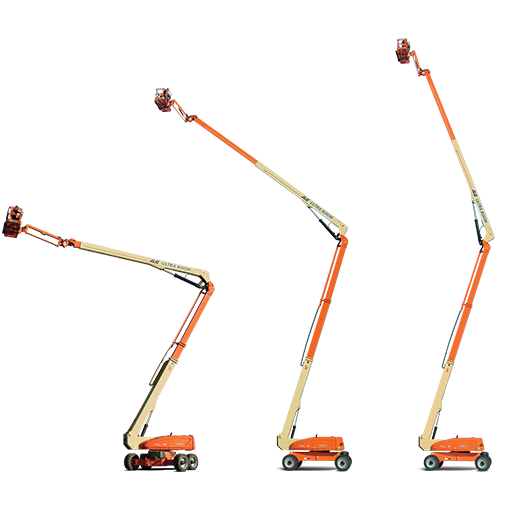

Knuckle Boom - Diesel - 38.1M (125.7ft)
Knuckle Boom - Diesel - 38.1M (125.7ft)
CODE: 10145
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Work around obstacles and other restrictions in your path with a Coates 38.1m Knuckle Boom. Explore our Knuckle Boom hire range at Coates now.
Suitable For
Specifications
Power Source |
|
| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 117 L / 30.9 gal. |
| Engine Type - Diesel (LRC) | Deutz TD2011L4 56 kW 75 hp |
Performance Data |
|
| Axle Oscillation | 0.3 m / 1 ft |
| Drive Speed - 4WD | 5.20 km/h / 3.2 mph |
| Gradeability - 4WD | 45 % |
| Platform Capacity - Restricted | 450 kg / 992.1 lb |
| Platform Capacity - Unrestricted | 230 kg / 507.1 lb |
| Swing | 360 Degrees |
| Swing Type | Continuous |
| Turning Radius - Outside (axles extended) | 5.89 m / 19.3 ft |
| Turning Radius - Outside (axles retracted) | 6.86 m / 22.5 ft |
Dimensional Data |
|
| Height | 11.46 m / 37.6 ft |
| Ground Clearance | 0.3 m / 1 ft |
| Machine Height | 3.05 m / 10 ft |
| Machine Length | 14.48 m / 47.5 ft |
| Machine Width | 2.49 m / 8.2 ft |
| Platform Dimension A | 0.91 m / 3 ft |
| Platform Dimension B | 2.44 m / 8 ft |
| Platform Height | 38.30 m / 125.7 ft |
| Tailswing | 0.91 m / 3 ft |
| Tyre Size | 445/50D710 Foam-Filled |
General Specifications |
|
| Capacity - Hydraulic Reservoir | 200.63 L / 53 gal. |
| Ground Bearing Pressure | 7.03 Kg/cm2 |
| Machine Weight | 20080 kg / 44268.8 lb |
Reach Specifications |
|
| Working Height | 40.30 m / 132.2 ft |
| Working Outreach | 19.90 m / 65.3 ft |
| Horizontal Jib Rotation | 125 Degrees |
| Horizontal Outreach | 19.25 m / 63.2 ft |
| Platform Height | 38.30 m / 125.7 ft |
| Up and Over Height | 18.44 m / 60.5 ft |
FAQ
What can the 125 ft articulating boom lift be used for?
This large boom lift provides safe lift capacity for a working height of up to 38.1m. It is ideal for all outdoor building and construction work where up and over access is required, and is purpose-built for use on rough terrain.
How to use an articulating boom lift?
An articulating boom lift is operated from the work platform, allowing you to position yourself and your equipment precisely where required for safe work practices. You can gain the required elevated work platform (EWP) ticket with a short Coates training course.
Where to rent an articulating boom lift?
The Australia-wide Coates network includes branches in all major Australian cities and regional centres. Contact us online, over the phone or in person for more details about your articulated boom lift hire.
This large boom lift provides safe lift capacity for a working height of up to 38.1m. It is ideal for all outdoor building and construction work where up and over access is required, and is purpose-built for use on rough terrain.
How to use an articulating boom lift?
An articulating boom lift is operated from the work platform, allowing you to position yourself and your equipment precisely where required for safe work practices. You can gain the required elevated work platform (EWP) ticket with a short Coates training course.
Where to rent an articulating boom lift?
The Australia-wide Coates network includes branches in all major Australian cities and regional centres. Contact us online, over the phone or in person for more details about your articulated boom lift hire.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.
