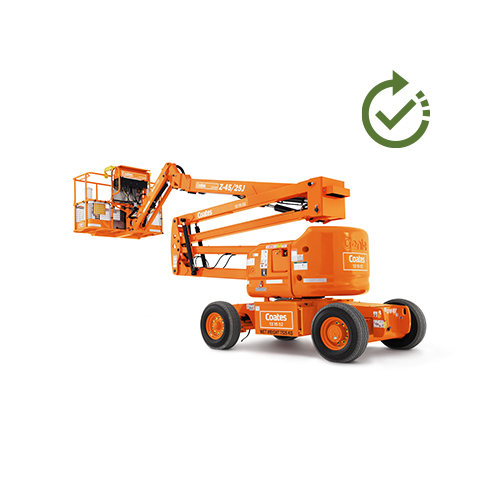

Knuckle Boom - Electric - 13.7M (45ft)
Knuckle Boom - Electric - 13.7M (45ft)
CODE: 10165
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Our 13.7m (45ft) electric booms have indoor and outdoor capability. The new drive systems enable machines to perform in full 4WD rough ground conditions or run silently inside the cleanest of warehouses.
✓ Easy and safe to operate with the latest operator protection systems
✓ Zero noise and zero emission (while running electric)
✓ Smart technology with start/stop engines and telemetry for battery preservation
✓ All purpose, all terrain, all the time
✓ Smaller footprint allows transportation on smaller trucks
✓ Cost savings from no or reduced fuel usage
Suitable For
This is the go-to knuckle boom for facilities maintenance staff including electricians, plumbers, fit-out specialists, cladding installers, painters and more. Easy to operate, and with zero emissions, the electric knuckle boom is safe to use in close proximity to other people, allowing them to get on with their work while you get the job done.
These booms suit all requirements from facilities maintenance to construction and to the harshest mining conditions.
Specifications
Power Source |
|
| Batteries | 8 x 6V, 370 A-h |
| Electrical System | 48 Volts DC |
Performance Data |
|
| Drive Speed - Platform Lowered | 5.20 km/h / 3.2 mph |
| Gradeability - 2WD | 30 % |
| Platform Capacity | 230 kg / 507.1 lb |
| Platform Capacity - Unrestricted | 226.80 kg / 500 lb |
| Swing | 360 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius - Outside | 3.15 m / 10.3 ft |
Dimensional Data |
|
| Ground Clearance | 0.2 m / 8 in. |
| Machine Height | 2.01 m / 6.6 ft |
| Machine Length | 6.45 m / 21.2 ft |
| Machine Width | 1.75 m / 5.7 ft |
| Platform Dimension A | 0.76 m / 2.5 ft |
| Platform Dimension B | 1.52 m / 5 ft |
| Platform Height | 13.72 m / 45 ft |
| Tailswing | 0 m / 0 in. |
| Tyre Size | 240/55-17.5 Urethane Filled Non-marking |
| Wheelbase | 2.01 m / 6.6 ft |
General Specifications |
|
| Capacity - Hydraulic Reservoir | 20 L / 5.3 gal. |
| Machine Weight | 6670 kg / 14704.8 lb |
Reach Specifications |
|
| Working Height | 15.72 m / 51.6 ft |
| Working Outreach | 7.89 m / 25.9 ft |
| Horizontal Jib Rotation | 0 Degrees |
| Horizontal Outreach | 7.24 m / 23.8 ft |
| Platform Height | 13.72 m / 45 ft |
| Up and Over Height | 7.70 m / 25.3 ft |
FAQ
How much can a 45 ft boom lift carry?
The 45ft boom lift has a platform capacity lift weight of 230kg, making it suitable for carrying a worker and all required tools and equipment.
Are 45 ft boom lifts towable?
This smaller boom lift is towable and easily transported to your worksite using a tilt-tray vehicle. It can be used on sloping surfaces with a gradient up to 30%. This electric knuckle boom is ideal for working indoors where noise restrictions apply.
How much to hire a 45 ft boom lift?
Coates boom lift hire cost will vary depending on the hire duration, location, and any other Coates services such as equipment delivery or elevated work platform (EWP) training required to operate a knuckle boom. Contact Coates online, over the phone or in person for more information.
How long can I hire a knuckle boom for?
You can hire the equipment as long as required to complete the job. You can even reserve Coates equipment online so it is available exactly when you need it.
The 45ft boom lift has a platform capacity lift weight of 230kg, making it suitable for carrying a worker and all required tools and equipment.
Are 45 ft boom lifts towable?
This smaller boom lift is towable and easily transported to your worksite using a tilt-tray vehicle. It can be used on sloping surfaces with a gradient up to 30%. This electric knuckle boom is ideal for working indoors where noise restrictions apply.
How much to hire a 45 ft boom lift?
Coates boom lift hire cost will vary depending on the hire duration, location, and any other Coates services such as equipment delivery or elevated work platform (EWP) training required to operate a knuckle boom. Contact Coates online, over the phone or in person for more information.
How long can I hire a knuckle boom for?
You can hire the equipment as long as required to complete the job. You can even reserve Coates equipment online so it is available exactly when you need it.
