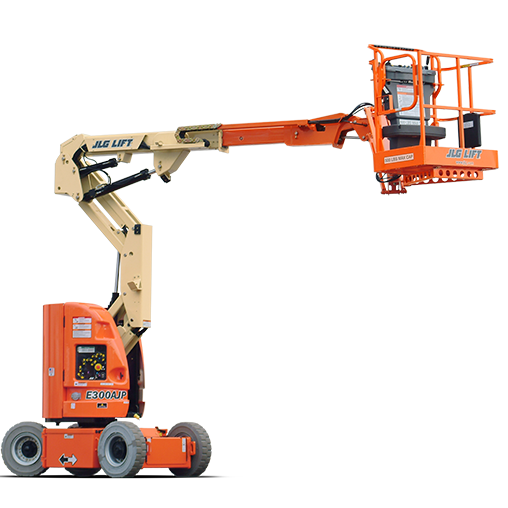

Knuckle Boom - Electric - 8.97M (29.4ft)
Knuckle Boom - Electric - 8.97M (29.4ft)
CODE: 10155
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.
Our range of Electric Knuckle Booms at Coates have longer working cycles with zero-emissions. Hire our 9.1m to 10.6m Electric Knuckle Boom now.
Suitable For
Specifications
Performance Data |
|
| Drive Speed - Platform Lowered | 4.80 km/h / 3 mph |
| Gradeability - 2WD | 25 % |
| Platform Capacity | 230 kg / 507.1 lb |
| Platform Capacity - Unrestricted | 226.80 kg / 500 lb |
| Swing | 350 Degrees |
| Swing Type | Non-Continuous |
| Turning Radius - Outside | 3.10 m / 10.2 ft |
Dimensional Data |
|
| Ground Clearance | 0.1 m / 4 in. |
| Machine Height | 2.01 m / 6.6 ft |
| Machine Length | 5.74 m / 18.8 ft |
| Machine Width | 1.22 m / 4 ft |
| Platform Dimension A | 0.76 m / 2.5 ft |
| Platform Dimension B | 1.22 m / 4 ft |
| Platform Height | 8.97 m / 29.4 ft |
| Tailswing | 0 m / 0 in. |
| Tyre Size | 25 x 7 x 12 Non-marking |
| Wheelbase | 1.65 m / 5.4 ft |
General Specifications |
|
| Capacity - Hydraulic Reservoir | 10.98 L / 2.9 gal |
| Machine Weight | 6990 kg / 15410.3 lb |
Reach Specifications |
|
| Working Height | 10.97 m / 36 ft |
| Working Outreach | 6.77 m / 22.2 ft |
| Horizontal Jib Rotation | 180 Degrees |
| Horizontal Outreach | 6.12 m / 20.1 ft |
| Platform Height | 8.97 m / 29.4 ft |
| Up and Over Height | 4.01 m / 13.2 ft |
FAQ
What is the meaning of knuckle boom?
A knuckle boom is an articulated elevated work platform (EWP) that can reach up and over obstacles for accessing at-height workspaces. In-platform controls allow the user to safely manoeuvre the platform vertically and horizontally.
Where can I use an electric knuckle boom?
An electric knuckle boom can be used indoors or outside. These boom lifts are ideal for indoor areas subject to noise restrictions. Zero fuel emissions make it suitable for use in close proximity to other people, and this smaller boom lift is perfect in areas with narrow access.
How to drive an electric knuckle boom?
As the operator, you have full control of the electric knuckle boom working height from the work platform. Knuckle boom operator qualifications are attained in a short course overseen by Coates.
What is a knuckle boom operator?
A knuckle boom operator is the person at the controls of the articulating boom from the work platform. Elevated work platform (EWP) qualifications are required for electric knuckle boom hire.
A knuckle boom is an articulated elevated work platform (EWP) that can reach up and over obstacles for accessing at-height workspaces. In-platform controls allow the user to safely manoeuvre the platform vertically and horizontally.
Where can I use an electric knuckle boom?
An electric knuckle boom can be used indoors or outside. These boom lifts are ideal for indoor areas subject to noise restrictions. Zero fuel emissions make it suitable for use in close proximity to other people, and this smaller boom lift is perfect in areas with narrow access.
How to drive an electric knuckle boom?
As the operator, you have full control of the electric knuckle boom working height from the work platform. Knuckle boom operator qualifications are attained in a short course overseen by Coates.
What is a knuckle boom operator?
A knuckle boom operator is the person at the controls of the articulating boom from the work platform. Elevated work platform (EWP) qualifications are required for electric knuckle boom hire.
