Knuckle Boom - Hybrid - 18M (60ft)
Knuckle Boom - Hybrid - 18M (60ft)
CODE: 10138
By submitting this enquiry you agree to Coates Hire's Communication Terms & Conditions.
Enquiring for
{{propApi.productName}}
Thank you for your enquiry. One of our team members will get back to you as soon as possible.

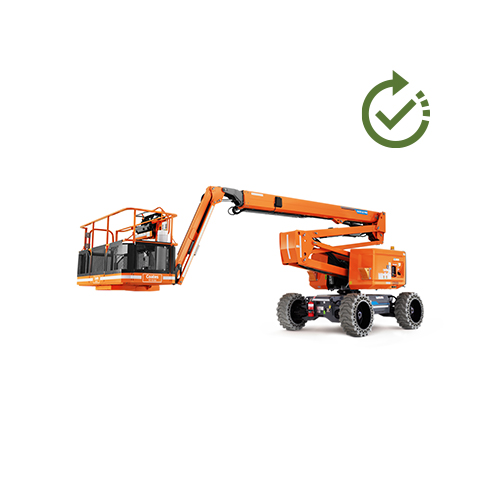

Our 18m (60ft) hybrid booms have indoor and outdoor capability. The new drive systems enable machines to perform in full 4wd rough ground conditions or run silently inside the cleanest of warehouses.
✓ Easy and safe to operate with the latest operator protection systems
✓ Zero noise and zero emission (while running electric)
✓ Smart technology with start/stop engines and telemetry for battery preservation
✓ All purpose, all terrain, all the time
✓ Smaller footprint allows transportation on smaller trucks
✓ Cost savings from no or reduced fuel usage
Suitable For
Knuckle boom uses are virtually unlimited, and the diesel/electric hybrid model has expanded the potential. This boom is the convenient alternative to push-around platforms and unsteady ladders when working at heights. Contractors, tradespersons and service professionals all benefit with knuckle boom convenience.
These booms suit all requirements from facilities maintenance, construction and even to the harshest mining conditions.
Specifications
POWER SOURCE |
|
| Batteries | 12 x 6V - 435 Ah |
PERFORMANCE DATA |
|
| Gradeability - 4WD | 45 % |
| Platform Capacity | 250 kg |
| Swing | 360 Degrees |
| Platform Rotation | 180° (+ 90° / - 90°) |
| Maximum wind speed rating | 45 km/h |
DIMENSIONAL DATA |
|
| Machine Height | 2.5 m |
| Machine Length | 8.54 m |
| Machine Width | 2.41 m |
| Height - stowed | 2.5 m |
| Wheelbase | 2.5 m |
| Ground clearance | 46 cm |
GENERAL SPECIFICATIONS |
|
| Machine Weight | 9785 kg |
| Proportional drive speed | 0.7 - 5 km/h |
| Tailswing | 41 cm |
| Tyres - solid rough terrain | 1025 x 365 mm |
| Range extender | Kubota, 18.5kW (Stage 5 in EU) |
REACH SPECIFICATIONS |
|
| Working Height | 20.76 m |
| Working Outreach | 18.76 m |
| Platform Height | 18.76 m / 45 ft |
| Up and Over Height | 8.52 m |
| Horizontal outreach | 11.91 m |
| Platform size | 1.83 m x 0.80 m |
FAQ
The Haulotte HA20 LE Pro is an articulated self-propelled knuckle boom, or elevating work platform that is powered by batteries that also has an onboard range extender in the form of a Kubota 18.5KW generator with a stage 5 engine. This boom lift gives plenty of reach for most elevated work tasks. It runs silently, is emission-free and has 4WD capability. This makes it ideal for indoor work but also the toughest outdoor conditions. Talk to a Coates product representative for detailed specs and information.
What is the basket capacity
This machine has a dual capacity of 250kgs unrestricted for 2 people and an optional 350kg restricted envelop.
How much to hire the hybrid knuckle boom?
Coates offers the best possible rates for short and long term hire. Enquire online, over the phone or in person with your specific requirements for an unbeatable deal. You are required to hold elevated work platform (EWP) qualifications, with training available at Coates.
Why choose a hybrid knuckle boom from Coates?
Coates has more equipment and machinery available than anyone else. We are your one-stop-shop for all hire solutions, with prices that can’t be beat. Our equipment is new or in as-new condition for reliability and smooth operation.
How much can a 18m boom lift carry?
The 18m boom lift has a platform capacity lift weight of 250kg, making it suitable for carrying a worker and all required tools and equipment.
How long can I hire a knuckle boom for?
You can hire the equipment as long as required to complete the job. You can even reserve Coates equipment online so it is available exactly when you need it.
Disclaimer
All images and product specifications have been reproduced for your convenience to assist you with product enquiries only. Coates cannot guarantee that the information is free from error, omissions, or is exhaustive. Coates makes no representation that any of the products are suitable for your purposes, and you acknowledge that you have relied on your own skill and judgement in this regard. Coates will not be held liable for any claim, loss or damage arising from the use of, or reliance on, the information on this website. Please contact a Coates representative for detailed product information.Knuckle boom uses are virtually unlimited, and the diesel/electric hybrid model has expanded the potential. This boom is the convenient alternative to push-around platforms and unsteady ladders when working at heights. Contractors, tradespersons and service professionals all benefit with knuckle boom convenience.
These booms suit all requirements from facilities maintenance, construction and even to the harshest mining conditions.
POWER SOURCE |
|
| Batteries | 12 x 6V - 435 Ah |
PERFORMANCE DATA |
|
| Gradeability - 4WD | 45 % |
| Platform Capacity | 250 kg |
| Swing | 360 Degrees |
| Platform Rotation | 180° (+ 90° / - 90°) |
| Maximum wind speed rating | 45 km/h |
DIMENSIONAL DATA |
|
| Machine Height | 2.5 m |
| Machine Length | 8.54 m |
| Machine Width | 2.41 m |
| Height - stowed | 2.5 m |
| Wheelbase | 2.5 m |
| Ground clearance | 46 cm |
GENERAL SPECIFICATIONS |
|
| Machine Weight | 9785 kg |
| Proportional drive speed | 0.7 - 5 km/h |
| Tailswing | 41 cm |
| Tyres - solid rough terrain | 1025 x 365 mm |
| Range extender | Kubota, 18.5kW (Stage 5 in EU) |
REACH SPECIFICATIONS |
|
| Working Height | 20.76 m |
| Working Outreach | 18.76 m |
| Platform Height | 18.76 m / 45 ft |
| Up and Over Height | 8.52 m |
| Horizontal outreach | 11.91 m |
| Platform size | 1.83 m x 0.80 m |
The Haulotte HA20 LE Pro is an articulated self-propelled knuckle boom, or elevating work platform that is powered by batteries that also has an onboard range extender in the form of a Kubota 18.5KW generator with a stage 5 engine. This boom lift gives plenty of reach for most elevated work tasks. It runs silently, is emission-free and has 4WD capability. This makes it ideal for indoor work but also the toughest outdoor conditions. Talk to a Coates product representative for detailed specs and information.
What is the basket capacity
This machine has a dual capacity of 250kgs unrestricted for 2 people and an optional 350kg restricted envelop.
How much to hire the hybrid knuckle boom?
Coates offers the best possible rates for short and long term hire. Enquire online, over the phone or in person with your specific requirements for an unbeatable deal. You are required to hold elevated work platform (EWP) qualifications, with training available at Coates.
Why choose a hybrid knuckle boom from Coates?
Coates has more equipment and machinery available than anyone else. We are your one-stop-shop for all hire solutions, with prices that can’t be beat. Our equipment is new or in as-new condition for reliability and smooth operation.
How much can a 18m boom lift carry?
The 18m boom lift has a platform capacity lift weight of 250kg, making it suitable for carrying a worker and all required tools and equipment.
How long can I hire a knuckle boom for?
You can hire the equipment as long as required to complete the job. You can even reserve Coates equipment online so it is available exactly when you need it.
